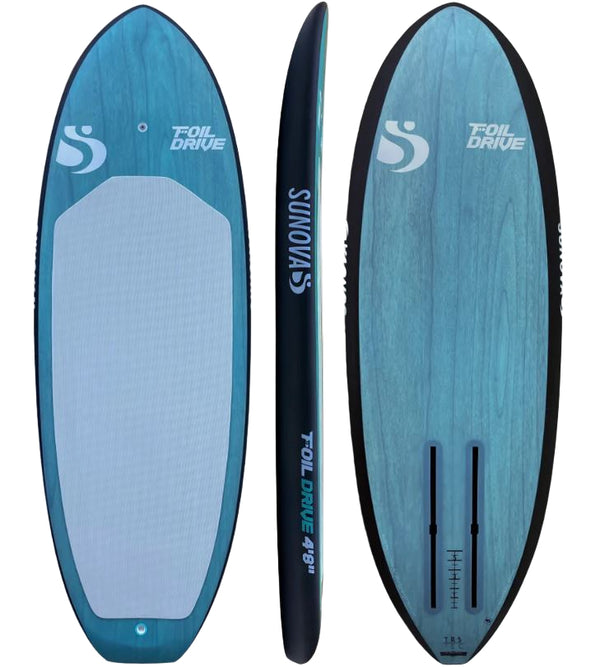

Sunova x Foil Drive Board

Find endless flight with Foil Drive!

The Foil Drive is a collaborative board with the legends at Sunova and Foil Drive. Designed and tested with the teams at Sunova and Foil Drive, this board was specially created to function with the Gen 2 System. With a larger surface area on the bottom, rolled hard edges and minimal rocker this board begins to plane as soon as you press go. But don’t let its friendly appearance fool you, it's an absolute weapon on foil. Specifically designed with a softer deck pad to ensure you’re comfortable enough to stay on foil for hours.

Checkout the Sunova X Foil Drive Board Package with Gen2 Assist Max

GENERAL GOAL | THEME OF THE BOARD:

This board is designed to pair perfectly with the Foil Drive Gen 2 system.

CONDITIONS IT'S WORKING BEST:

Any conditions. Whatever you usually prone, or downwind with Foil Drive assistance.

SKILL LEVEL IT'S BEST FOR:

Novice to pro. Just choose size according to level.

WHAT YOU THOUGHT OF WHEN YOU DESIGNED IT?

I wanted a board that would work effortlessly with the Foil Drive Gen 2 system. A board that is designed to get into the air, and on foil as easily as possible, that still has a progressive shape and can be pushed really hard. A true balance of performance and functionality. It also needed to work well as a prone board in the surf, for those days where you want to give the Foil Drive a break. You probably won’t have many days like this, as Foil Driving is just too addictive.

WHAT IT POSSIBLY COMPROMISES ON THEN?

The rocker is quite flat, so it doesn’t like taking off deep in the pocket on heavy waves. This is not exactly what it has been designed for though.

SHAPE DETAILS | DESIGN INFO

OUTLINE:

Pulled in nose, parallel mid section, to pulled in tail. The narrower nose and tail help to
lay the board over on harder carves without catching a rail. The parallel mid section
helps the board track and plane, enabling it to get on foil even quicker.

RAILS:

Rolled with hard bottom edges. The rolled rails enable the bottom surface area of the
board to be as big as possible, enabling earlier planning and more equal volume
distribution. The hard edges help water release more efficiently, reducing drag. They are still tucked enough through the mid-rear section to ensure they don’t catch on more radical maneuvers.

ROCKER:

Flatter with subtle nose kick. The flatter rocker helps the board to plane quicker with the assistance of the Foil Drive system. There is a subtle tail kick, which helps keep it out of the way when you are pumping up, or taking off.

BOTTOM:

Subtle rounded V into flat midsection. The subtle V at the front helps the board on touchdowns, it won’t immediately stick and bog. The flat planing surface through the
middle allows the board to glide effortlessly with assistance from the foul drive.

DECK:

Concave Deck. We have a concave deck to get the rider as close to the foil as possible while maintaining the volume needed. It's a soft concave without any drastic edges so it doesn't trap water on the deck after takeoff. The deck line has been pulled right out to the edge of the rail edge, making the usable deck area as large as possible.

FINAL STATEMENT:

This is the ultimate board for use with Foil Drive. A fine balance of usability and performance make this a real winner. If you’re looking for one board to do it all, look no further.

1.0lb EPS Core:

A stiff lightweight core that offers good buoyancy and responsiveness.

1.2mm Paulownia Sandwich:

Sustainably source Paulownia wood bio epoxy resin and fiberglass. Paulownia wood is lightweight, strong, and durable wood. Despite its lightweight nature, Paulownia is surprisingly strong, offering a good strength-to-weight ratio.

Paulownia is resistant to decay and rot, and has low shrinkage and swelling, making it stable and less likely to warp.

Slightly permeable Gore-Tex membrane self regulating air vent that allows air to pass freely, but not water.

Gore-Tex has billions of tiny pores. These pores are much smaller than water droplets but large enough for water vapor molecules to pass through, allowing for breathability while keeping water out.

Carbon fiber reinforced leash plug for better strength. Carbon fiber is prized for its exceptional strength-to-weight ratio, stiffness, and resistance to corrosion and fatigue.

High density foam reinforced fin system offer amazing strength and resilience.

Parabolic biaxial carbon fiber rails running the entire outline of the board offering great strength and resistance. Parabolic biaxial carbon fiber rails, often referred to as FutureFlex technology, are used to enhance flex, strength, and responsiveness. They provide a unique parabolic flex pattern that allows the board to deliver more drive, speed, and power.

QUICK OVERVIEW-

OUTLINE:

PULLED IN NOSE AND TAIL, STRAIGHT MID SECTION

BOTTOM:

V TO FLAT

ROCKER:

FLATTER WITH SLIGHT NOSE KICK

RAILS:

ROLLED WITH HARD EDGES

GOAL:

HIGH PERFORMANCE FOIL DRIVE BOARD

CONDITIONS:

SUITABLE FOR ANYTHING
RIDER: NOVICE TO PRO

Meet The Designer: Marcus Tardrew

Marcus has a long history with the ocean. He basically grew up in it and hasn't been out much ever since. Sailing, Windsurfing, Surfing, Foiling and Downwinding. He was the first Australian to complete the Molokai to Oahu race on a foil in 2019. Marcus has been a lead designer at SUNOVA since 2016, initially starting out on Race SUP’s before moving on to Surf SUP’s and then Foil Boards. Across these disciplines there have been multiple world champions crowned on his designs. Apart from being an amazing designer, Marcus also competes in all these disciplines at an elite level. He’s worked tirelessly over the past years, with input from riders all around the world, along with his own revelations, to design the best boards possible.

Videos:

Compatible with:

Foil Drive Gen2 Assist Max
