Foil Drive Fusion x CODE Ultra High Modulus Bundle The Foil Drive Fusion x CODE Ultra High Modulus Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with CODE masts for the ultimate...

Foil Drive Fusion x CODE Ultra High Modulus Bundle

The Foil Drive Fusion x CODE Ultra High Modulus Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with CODE masts for the ultimate hybrid setup. Enjoy the freedom to ride as an efoil alternative or switch to a high-performance Assist with ease. One system, endless pairing possibilities.

Note: This DOES NOT include a CODE Foils Ultra High Modulus Integrated Mast.

Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with a CODE Ultra High Modulus Integrated Mast. Please see the full product listings for product details, linked in the copy below.

The perfect bundle to suit your CODE Ultra High Modulus Carbon Integrated Mast is:

Tech Specs

  • System Nominal Voltage: 43.2V
  • Battery Capacity Range: 864Wh
  • Max Thrust: 34kg / 74.9lbs
  • Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
  • Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
  • Dimensions with Battery: L658 x W125 x H54mm
  • Horsepower: 4.635HP
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

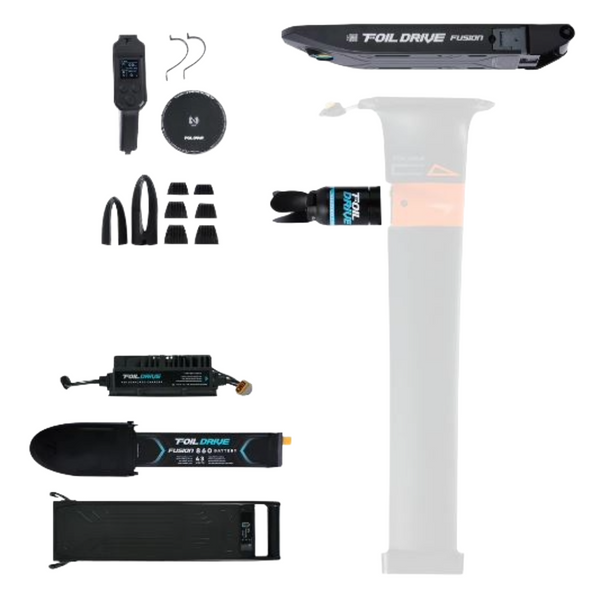

What’s Included

Foil Drive Fusion
Fusion 860 Battery
Integrated Mast High Power Motor
Chosen AC Lead

V3 Controller with Bump Guard Installed
Universal Motor Pod
43V Standard Charger 12amp with selected AC Cable
1x Mast Cable Guide 23cm
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel
