Armstrong Pump 202 Rear Wing

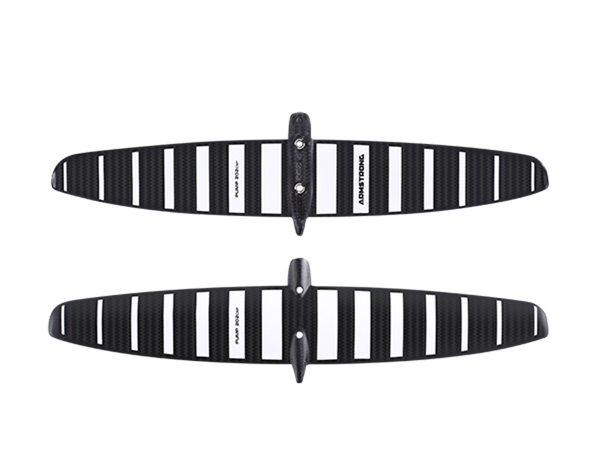

Armstrong Pump 202 Stabilizer

Maximum pumping efficiency, ultra-low stall speed, and confidence-inspiring pitch stability.

The Armstrong Pump 202 Stabilizer is designed specifically to complement the Armstrong Pump Foil front foil range. Its efficient high-aspect outline, straight leading edge, and high-camber foil section help maintain flight at exceptionally low speeds while reducing the effort required to keep pumping.

Whether you are developing your first consistent pumping cadence or trying to extend your personal distance record, the Pump 202 provides a stable, predictable platform that helps you stay on foil longer. Its strong pitch stability allows riders to concentrate on timing and technique while retaining enough sensitivity for experienced foilers.

Maximum Time on Foil

The Pump 202 delivers low-speed lift, efficient acceleration, and a relaxed pumping cadence suited to dock starts, flatwater pumping, downwind foiling, and connecting small bumps. Its high-aspect outline and straight leading edge improve glide efficiency, helping the foil carry farther between each pump.

Stable and Predictable

The high-camber foil section works with Armstrong APF front foils to provide consistent pitch stability throughout the pumping cycle. This solid feeling underfoot helps newer riders build proper technique while allowing experienced riders to cover greater distances with less effort.

Designed with Chris Porter

The Pump 202 was developed in collaboration with aerospace engineer and foil designer Chris Porter. Its design shares development influences with Porter’s Crisp stabilizers and was engineered as part of a complete pump-foil system rather than as a standalone afterthought.

Key Features

• Ultra-low stall speed for easier sustained flight
• High-camber foil section provides strong low-speed lift
• Pitch-stable design supports a smooth, natural pumping cadence
• High-aspect outline improves glide and efficiency
• Straight leading edge and flat rondure
• Developed specifically for Armstrong APF front foils
• Suitable for pump foiling and downwind foiling
• Compatible with the Armstrong A+ System

Technical Specifications

• Span: 397 mm / 15.6 in
• Surface Area: 202 cm² / 31.3 in²
• Aspect Ratio: 7.8
• Outline: High aspect with straight leading edge
• Rondure: Flat
• Connection: Armstrong A+ System
• Recommended Rider Weight: All rider weights
• Primary Disciplines: Pump foiling and downwind foiling

Compatibility

The Pump 202 is an Armstrong A+ System stabilizer optimized for use with Armstrong Pump Foil front wings. A compatible Armstrong A+ fuselage, mast, front foil, board, and mounting hardware are required to complete the foil setup.

What’s Included

• Armstrong Pump 202 Stabilizer
• Protective stabilizer cover
• Two Torx M6 × 17 mm 316L stainless-steel dome-head screws with rainbow titanium coating
• Three polycarbonate Pro Shims

*Front foil, fuselage, mast, board, and other components are sold separately.
