Foil Drive Fusion Unit

$7,275.36
Foil Drive Fusion With the power and runtime of an Efoil, the lightness and adaptability of an Assist, the Fusion earns its name as the perfect blend of both worlds....

Foil Drive Fusion

With the power and runtime of an Efoil, the lightness and adaptability of an Assist, the Fusion earns its name as the perfect blend of both worlds.

*Pre-Order Notice: Fusion systems are in high demand! By purchasing today, you are entering a pre-order queue and will be notified as soon as your Pre-Order is ready for shipment. While some orders may ship earlier, please note that your pre-order may not dispatch until January.

As its name suggests, the Fusion is a true hybrid electric foil system, bringing together the best of both worlds in one neat, versatile package. An E-foil Alternative, the Fusion is the ideal tool for long rides, learners and performance riders alike. Why an alternative? Because the Fusion isn't limited to just an efoil like others. By simply switching to a shorter cable length, it transforms into an extremely powerful, long-runtime Foil Assist.

Maintaining the lightweight, sleek, hydrodynamic form of the Assist range, the Fusion delivers greater power and longer runtime thanks to the Fusion 860 Battery (864 Wh) and 43-volt electronics. The battery is a separate, removable unit with a fully enclosed, single-piece housing and integrated nose cone for maximum durability, a higher water rating, and improved long-term reliability. This rugged, self-contained design also makes swapping, transporting, and protecting your power source effortless.

One Tool, Endless Possibilities.

Unlike the other two systems in the Gen2 range, the Fusion doesn't carry the "Assist" in its name. Thanks to its technical advancements, it stands apart in its own subcategory, Gen2.5.

Who is it for?
The Fusion is those wanting an adaptable efoil system OR riders wanting more power and ride time!

  • Riders seeking an adaptable and powerful Efoil alternative
  • Learners who want stability, longer ride times and smoother progression
  • Experienced riders who want more power and more runtime
  • Anyone who wants a single system that can do everything including Surf, Wing, Downwind, Wake and Flatwater

Wanting to make install a breeze?
We recommend our Integrated Mast listings.

Key Features of the Fusion
• V3 Controller with GPS speed, distance, and session tracking
• Tilt Sensor (IMU) for automatic motor safety cutoff
• Robust one-piece battery with enhanced BMS and Bluetooth firmware
• 1.45-hour charging with storage mode options
• Slide-in tool caddy, titanium split bolts, and saltwater protection anodes
 • Redesigned day-use and storage cases
• Battery Caddy that functions as a USB-A and USB-C power bank and storage discharger (Supplied with Battery)

Tech Specs:
  • System Nominal Voltage: 43.2V
  • Battery Capacity Range: 864Wh
  • Max Thrust: 34kg / 74.9lbs
  • Power to Weight Ratio (Thrust/Weight): 4.35 N/KG
  • Minimum Install Weight*: 7.8kg / 17.1lbs with Fusion 860 Battery
  • Dimensions with Battery: L658 x W125 x H54mm
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

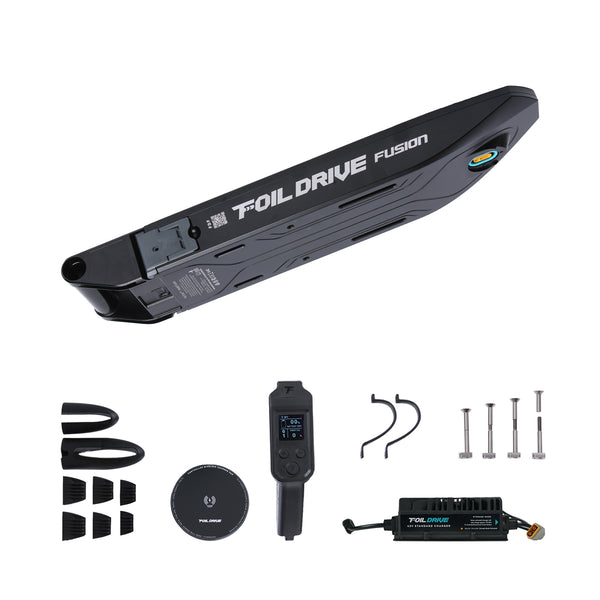

Includes:

*Choice of Motor System*
- Complete High Power Motor w/ 20cm Cable
- Complete Standard Motor w/ 20cm Cable

*Choice of Charger AC Lead*
- US Plug Type
- AU Plug Type
- EU Plug Type
- UK Plug Type

____

Foil Drive Fusion (In Fusion Case)
V3 Controller with Bump Guard Installed
Universal Motor Pod
43V Standard Charger 12amp with selected AC Cable
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack


Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfiber Towel

Compatible with:

Fusion 43V Batteries
43V Foil Drive Charger

Videos:
