Foil Drive Retro-fit High Power Motor Kit

Ready to electrify your foil setup? The Mini Pod Retro-fit High Power Motor Bundle includes our latest and highest performance motor components needed to quickly install or remove Foil Drive power to your existing mast.

Combining the low-profile Universal Mini Pod, High Power V2 Motor and Three Blade Propeller setup, this is our go-to retro-fit configuration for the most takeoff thrust, efficient surface motoring and easiest performance across assisted foiling disciplines.

Details:

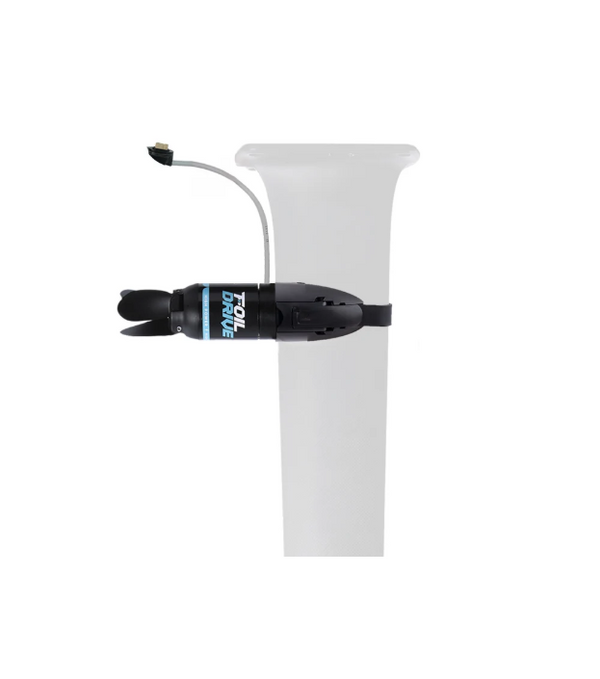

The Universal Mini Pod creates a clean, low-drag connection between your motor and foil mast while remaining fully removable and adjustable without tools.

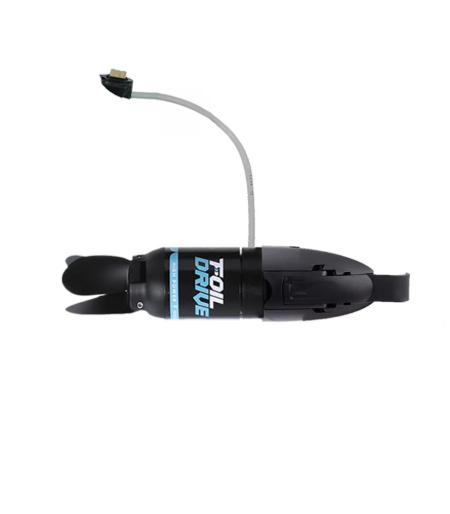

Paired with the High Power V2 Motor, the setup delivers the most low-end thrust and more runtime power delivery.

The Three Blade Hub and Standard Propellers now come standard with the bundle, creating our most popular all-round motor configuration for punchy acceleration, smooth power delivery and efficient battery life.

A 20cm removable motor cable positions the motor at a versatile starting height for surf, pumping, wing, downwind, wake and flatwater assisted foiling. As riding progresses or your setup changes, the removable cable can be swapped for another length.

For dedicated eFoiling, a longer 60cm or 70cm cable is recommended and available seperately.

Features:

• Adjustable motor position on mast
• Toolless Mini Pod installation and removal
• Interchangeable motor cable lengths

  Tech Specs

  • High Power V2 Motor
  • Universal Mini Pod retro-fit mounting system (low drag)
  • 20cm removable motor cable
  • Three Blade Hub
  • Standard Three Blade Propellers



  Included

  Universal Mini Pod:
  Outer Pod: Smooth, hydrodynamic outer shell
  Inner Pod: Attaches directly to the motor and slides securely into the Outer Pod

  3x Pod Straps:
  Small: 95–110mm
  Medium: 112–128mm
  Large: 130–145mm

  High Power Motor:
  High Power Stator
  High Power Rotor

  Motor Cable:
  20cm Removable Cable
  Rubber Cable Guide

  Propeller Setup:
  Three Blade Hub
  Three Standard Propellers

  Hardware:
  4x M4 x 16mm Stainless Steel Bolts - Inner Pod to Motor
  5x M4 x 10mm Stainless Steel Bolts - Motor to Three Blade Hub
  3x M3 x 30mm Stainless Steel Bolts - Three Blade Hub to Propeller

  Protection:
  Neoprene Motor Protection Cover

  Compatible with:

  Compatible With All Foil Mast Brands

  Designed as a Retro-fit Motor solution for riders wanting to add Foil Drive to their existing foil setup.

  Not Compatible with Gen1 Assist or Assist Plus

  Universal Mini Pod uses interchangeable straps to accommodate a wide range of foil mast profiles.

  Removable V2 motor cable allows the motor height to be changed depending on your board, mast and riding style.

  For dedicated E-Foiling, pair the motor with a longer 60cm or 70cm removable cable.
